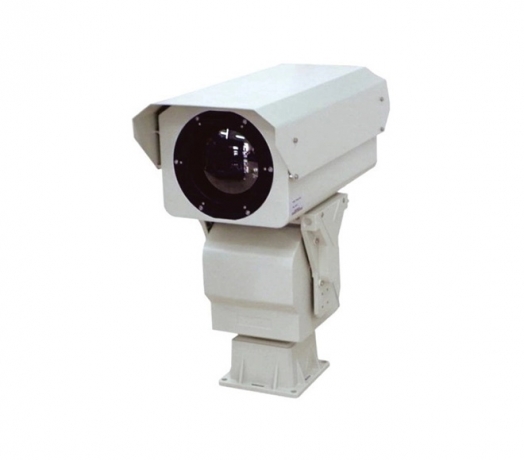

TCT series Long Range Thermal Cameras are developed based on the latest generation cooled infrared technology and continuous zoom infrared optical technology. The FPA detector sensitivity can reach 20mk@25℃ and resolution 384 ×288 / 640 × 512 / 1280 × 1024 with pixel pitch 12/10um. The optical camera is of high resolution with defog function for daytime details observation. The overall structure and integral aluminum alloy housing make the camera ingress protection IP 66, which ensures the camera´s normal operation under tough weather conditions. In combination with 360-degree PT, the camera is capable of conducting 24-hour real-time monitoring.
Specifications of border security surveillance system TCT384
|
Thermal Sensor |
TBS384C-C320T150 |
|
Detector |
MCT with Stirling cooler |
|
Resolution |
320x256 |
|
NETD |
Up to 20m K ( @25 ℃ F4 .0 ) |
|
Spectral Range |
3.0um~5.0um |
|
Focal length |
|
|
length |
15~ 150mm |
|
18 .2° ~ 1 .8° |
|
|
FOV |
Dual optical FOV btw WFOV and NFOV available |
|
One shot auto focus |
|
|
Optical zoom |
AS+ DOE advanced optical design, high infrared transmission; |
|
Applied 3CAM high-precision design; |
|
|
IFOV |
|
|
0 .04 ~ 0 .4 mrad |
|
|
Image processing |
|
|
SDE |
SDE digital image processing |
|
Pseudo Color |
10 pseudo color and B/W,B/W inverse |
|
AGC |
Yes |
|
Digital Zoom |
1-8X continuous digital amplification, Optical electronic relay zoom |
|
Visible camera (available for dual spectral thermal camera) |
|
|
Sensor |
1/2 .8” |
|
Resolution |
1920x 1080 |
|
F rame rate |
32Kbps ~ 16Mbps， 60Hz |
|
Illumination |
0 .05Lux(Color) , 0 .01Lux(B/W ) |
|
Optical lens |
8~320mm/ 40X |
|
Image stabilizer |
yes |
|
Defog |
O n/off |
|
Focus |
One shot auto/Manual |
|
Digital Zooming |
16x |
|
Housing |
|
|
Material |
aluminum alloy housing, waterproof |
|
Structure |
Integral single-window design |
|
Surface |
PTA coating, anti-sea water corrosion |
|
Sealing rate |
IP66 |
|
Temperature control |
Built-in temperature controller, thermal balance design |
|
Interface |
aviation waterproof connector |
|
PTZ ( optional ) |
|
|
Load |
50kg military-level digital PT |
|
Az/E l range |
Az 0~360° ，E l -45°~+45° |
|
Az/E l Velocity |
0 .01 ~ 30°/S high precision variable speed control and locking |
|
P reset |
80 presets, support lens zoom and 0 ~ 30°/S, support apple peel scanning function memory, variable speed scanning |
|
Options available |
|
|
Laser Range Finder |
Yes, available from 3 kms to 20kms |
|
GEO Positioning |
Yes |
|
Digital Magnetic Compass |
yes |
|
Turbulence filter |
For thermal video |
|
Interface |
|
|
Ethernet |
RJ45 |
|
Remote OSD setting |
Yes |
|
Video Output |
PAL/ NTSC |
|
Power |
AC/ DC24V, anti-reverse connection protection |
|
Waterproof connector |
Yes |
|
Environmental |
|
|
Operate Temp |
-25℃ ~ +55℃ ( -40℃ optional ) |
|
Storage Temp |
- 35℃ ~ + 75℃ |
|
Humidity |
< 90% |
|
Ingress Protect |
IP66 |
|
Anti-shock |
0 2g ( GB/T15211— 20135 4 harshest level 2 standard ) |
|
Anti- resistance |
15g ( GB/T15211— 20135 3 harshest level 3 standard ) |
|
Anti- lightening |
power 4000V, signal 2000V |
|
Anti-salty |
PH6.5 ~ 7.2， continuous spraying 48 hours |
|
Consumption ( PT included ) |
min .40W， max . 120W |
|
weight ( PT included ) |
≤ 45kg |
Features of Border Coastal Surveillance System TCT384
Long-range 24-hours monitoring.
Delicate and smooth images.
Convenient for installation and application.
360-degree of Omni-directional Pan-Tilt
Super-strong aluminum alloy with Ip66
Higher sensitivity
Effective in all environments
Small size and low weight
As a professional thermal imaging manufacturer, Everay Electro-Optical Co., LTD has high-quality inspection camera for sale. Welcome to contact us if needed.
